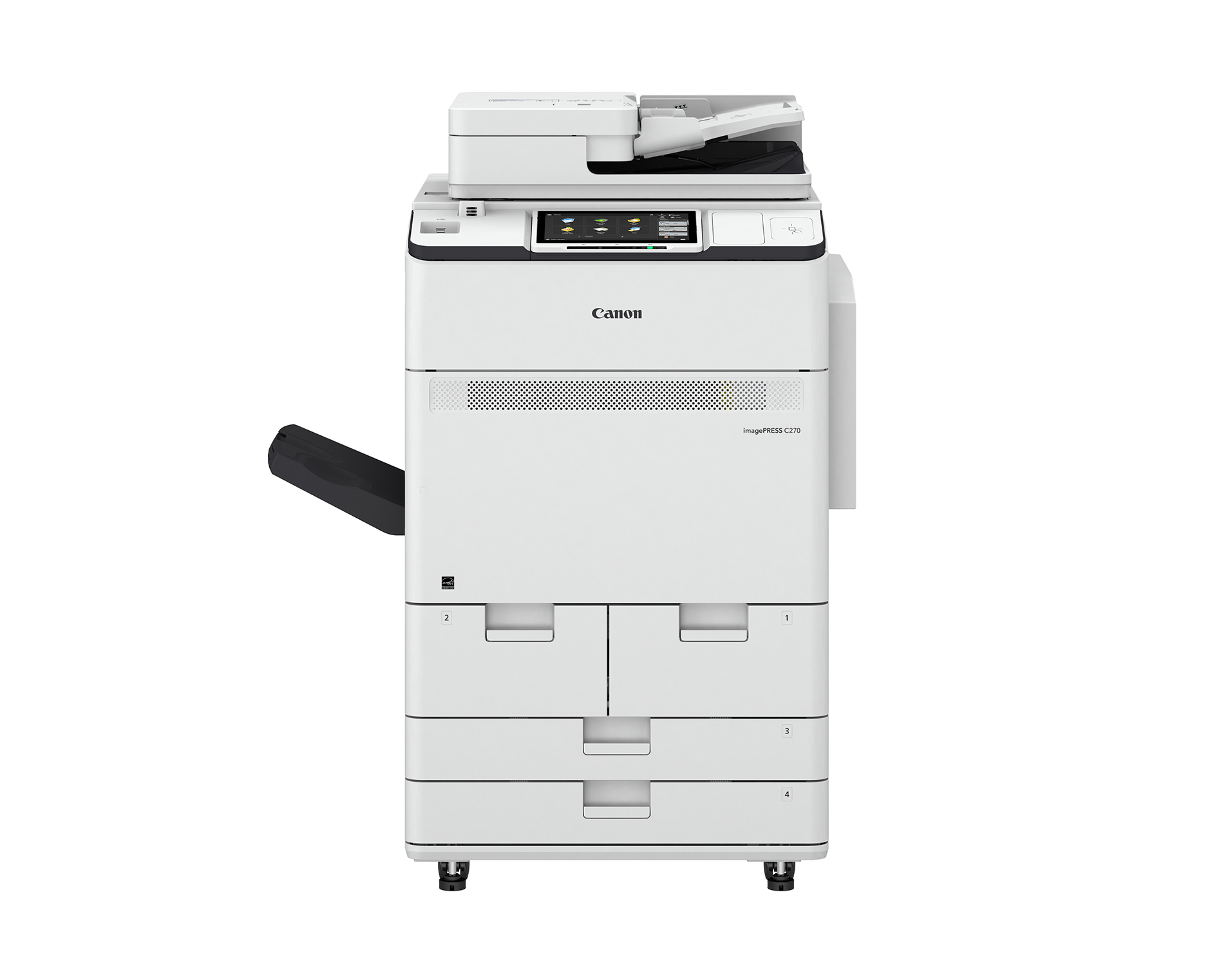

imagePRESS C270

Main unit

Machine type:	A3 Colour Laser Multifunctional
Core functions:	Print, Copy, Scan, Send, Store and Optional Fax
Processor:	1.8GHz Dual Core Processor
Control panel:	10.1” (25,6 cm) TFT LCD WSVGA Colour Touch panel
Memory:	Standard: 5.0GB RAM
Storage:	Standard: (SSD) 256GB Optional: (SSD) 1TB
Interface Connection:	NETWORK Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN(IEEE 802.11 b/g/n) Optional: Bluetooth Low Energy OTHERS Standard: USB 2.0(Host) x1, USB 3.0(Host) x1, USB 2.0(Device) x1 Optional: Serial Interface, Copy Control Interface
Paper supply capacity (A4, 80gsm):	Standard: 3,550 sheets 250-sheet Multi-purpose tray, 1,100-sheet Paper Deck x 2, 550-sheet Paper Cassette x 2 Maximum: 7,050 sheets (with Paper Deck Unit-E1 or POD Deck Lite-C1)
Paper output capacity (A4,80gsm):	250 sheets (with Copy Tray-R2) Maximum: 3,500 Sheets (with Staple Finisher-AC1 or Booklet Finisher-AC2) Maximum: 5,000 Sheets (with Staple Finisher-AG1 or Booklet Finisher AG1)
Finishing capabilities:	With options: Collate, Group, Offset, Staple, Saddle Stitch, Hole Punch, Eco Staple, Staple On Demand, Document Insertion, Z-fold, Half-fold, C-fold, Accordion-Z fold, Double Parallel-fold, Trimming
Supported media types:	Multi-purpose tray: Thin, Plain, Recycled, Color, Heavy, Coated, Textured, Tracing, Bond, Transparency, Label, Pre-punched, Letterhead, Tab, Envelope Paper Decks (Right/Left): Thin, Plain, Recycled, Color, Heavy, Tracing, Bond, Transparency, Bond, Pre-punched, Letterhead Paper Cassettes (Upper/Lower): Thin, Plain, Recycled, Color, Heavy, Bond, Transparency, Pre-punched, Letterhead, Tab1, Envelope2 1 Tab Feeding Attachment-F1 is required 2 Envelope Feeder Attachment-F1 is required.
Supported media sizes:	Multi-purpose tray: Standard size: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R Custom size: 90.0 x 148.0 mm to 330.2 x 487.7 mm Long size: 210.0x487.8 mm to 330.2x1,300.0mm1 Free size: 100.0 x 148.0 mm to 330.2 x 487.7 mm Envelope: COM10 No.10, Monarch, DL, ISO-C5 Envelope custom size: 90.0 x 148 mm to 330.2 x 487.7 mm 1 by service mode Paper Decks (Right/Left): Standard size: A4, B5 Paper Cassettes (Upper/ Lower): Standard size: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R Custom size: 139.7 x 182.0mm to 330.2 x 487.7mm Envelope: COM10 No.10, Monarch, DL, ISO-C5 Envelope custom size: 98.0 x 148.0mm to 330.2 x 487.7mm
Supported media weights:	Multi-purpose tray: 52 to 350 gsm Paper Decks (Right/Left): 52-220 gsm Paper Cassettes (Upper/Lower): 52-256 gsm Multi-purpose tray: 52-350 gsm Optional PAPER DECK UNIT-E1: 52-256 gsm Optional POD DECK LITE-C1: 52-350 gsm Optional STACK BYPASS-D1: 52-350 gsm Duplex: 52-220 gsm
Warm-up time:	Quick Startup Mode: 4 seconds or less (Time until key operations can be performed on the touch panel display) From Power On: 30 seconds or less (Time until it becomes possible to start copying) From Sleep Mode: 30 seconds or less
Dimensions (W x D x H):	689 x 937 x 1,185 mm
Weight:	Approx. 261 kg (including toner)

Print specifications

Weight:	C270 Print speed (CL/BW) 70 ppm CL and 80 ppm BW (A4, A5, A5R, A6R) 35 ppm CL and 40 ppm BW (A3), 49 ppm CL and 56 ppm BW (A4R) A5/A6R (1-sided) C265 65 ppm CL and 70 ppm BW (A4, A5, A5R, A6R*) 32 ppm CL and 35 ppm BW (A3), 46 ppm CL and 49 ppm BW (A4R)
Target (Max) print/copy volume per month:	Up to 100,000 pages
Monthly duty cycle:	C270 390,000 pages C265 330,000 pages
Front-back registration:	Cross track: 2.0 mm or less, In track: 1.2mm or less
Printing method:	Colour Laser Beam Printing (Electronic Photography)
Print resolution (dpi):	2,400 x 2,400
Page description languages:	UFR II, PCL6, (optional) imagePRESS PS Printer Kit-G1
Direct print:	Direct printing available from USB memory, Advanced Space, Remote UI and Web Access* Supported file types: TIFF, JPEG, PDF, EPS and XPS *Only PDF print from websites is supported
Printing from mobile and cloud:	AirPrint, Mopria, Canon PRINT Business, uniFLOW Online and Universal Print A range of software and MEAP-based solutions are available to provide printing from mobile devices or internet-connected devices and cloud-based services depending on your requirements. Please contact your sales representative for further information.
Fonts:	PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T* (Japanese, Korean, Simplified and Traditional Chinese), Barcode fonts** * Requires optional PCL INTERNATIONAL FONT SET-A1 **Require optional BARCODE PRINTING KIT-D1 PS fonts: 136 styles
Print Features:	Secured Print, Secure Watermark, Header/Footer, Page Layout, Two-sided Printing, Mixed Paper Sizes/ Orientations, Front/Back Covers, Toner Reduction, Poster Printing, Forced hold printing, Print Date, Scheduled Printing, Printing Using a Virtual Printer
Operating System:	UFRII: Windows® 8.1/10/11/Server2012/Server2012 R2/ Server2016/Server2019/Server2022, Mac OS X (10.11 or later) PCL: Windows® 8.1/10/11/Server2012/Server2012 R2/ Server2016/Server2019/Server2022 PS: Windows® 8.1/10/11/Server2012/Server2012 R2/ Server2016/Server2019/Server2022, Mac OS X (10.11 or later) PPD: Windows® 8.1/10/11, Mac OS X(10.11 or later)

Copy specifications

Copy speed (CL/BW):	C270 70 ppm CL and 80 ppm BW (A4, A5, A5R, A6R), 35 ppm CL and 40 ppm BW (A3), 49 ppm CL and 56 ppm BW (A4R) 1-sided C265 65 ppm CL and 70 ppm BW (A4, A5, A5R, A6R), 32 ppm CL and 35 ppm BW (A3), 46 ppm CL and 49 ppm BW (A4R) 1-sided
First-Copy-Out Time (A4) (BW/CL):	C270 Approx. 4.4/5.4 seconds or less C265 Approx. 4.8/5.9 seconds or less
Copy resolution (dpi):	600 x 600
Multiple Copies:	Up to 9,999 copies
Copy density:	Automatic or Manual (9 Levels)
Magnification:	25% - 400% (1% Increments)
Preset reductions:	25%, 50%, 70%, 100% (1:1)
Preset enlargements:	141%, 200%, 400%
Copy Features:	Preset R/E Ratios by Area, Two-Sided, Density Adjustment, Original Type Selection, Interrupt Mode, Book to Two Pages, Two-sided Original, Job Build, N on 1, Add Cover, Insert Sheets, Different Size Originals, Page Numbering, Copy Set Numbering, Sharpness, Erase Frame, Secure Watermark, Print Date, Gutter, Print & Check, Negative/Positive, Repeat Images, Merge Job Blocks, Mirror Image, Store in Mail Box, Superimpose Image, Copy ID Card, Skip Blank Pages, Free Size Original, Color Mode, Reserved copy, Copy Sample

Scan specifications

Type:	Single-pass Duplexing Automatic Document Feeder* [2-sided to 2-sided (Automatic)] *Detect Feeder Multi Sheet Feed is supported.
Document Feeder paper capacity (80 gsm):	200 Sheets
Acceptable originals and weights:	Platen: Sheet, Book, 3-Dimensional objects Document Feeder media weight: 1-sided scanning: 38 to 220 gsm (BW, CL) 2-sided scanning: 38 to 220 gsm (BW, CL) *An acceptable weights of A6R or smaller is 50 to 220gsm.
Supported media sizes:	Platen: max. scanning size: 297.0 x 431.8 mm Document Feeder media size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, B6R, Custom size (70.0 x 139.7 mm to 304.8 x 431.8 mm)
"Scan speed (ipm: BW/CL; A4)":	Single-sided Scanning: 135/135 (300 x 300 dpi, send), 80/80 (600 x 600 dpi, copy), Double-sided Scanning: 270/270 (300 x 300 dpi, send), 160/90 (600 x 600 dpi, copy)
Scan resolution (dpi):	600 x 600
Pull Scan specifications:	Colour Network ScanGear2 for both TWAIN and WIA Supported OS: Windows® 8.1/10/Server2012/Server2012 R2/ Server 2016/Server 2019 As of Oct. 2021
Scan method:	Push Scan, Pull Scan, Scan to Box, Scan to Advanced Space, Scan to Network, Scan to USB Memory Key, Scan to Mobile devices, Scan to cloud (uniFLOW Online)

Send specifications

Destination:	E-mail/Internet FAX (SMTP), SMB v3.0, FTP, WebDAV, Mail Box, Super G3 FAX (Optional), IP Fax (Optional)
Address book:	LDAP (2,000), Local (1,600), Speed dial (200)
Send resolution (dpi):	600 x 600
Communication protocol:	File: FTP (TCP/IP), SMB v3.0, WebDAV E-mail/I-Fax: SMTP, POP3
File format:	TIFF, JPEG, PDF (Compact, Searchable, Apply policy, Optimize for Web, PDF/A-1b, Trace & Smooth, Encrypted, Device Signature, User Signature), XPS (Compact, Searchable, Device Signature, User Signature), Office Open XML (PowerPoint, Word)
Universal Send Features:	Original Type Selection, Two-sided Original, Book to Two Pages, Different-size Originals, Density Adjustment, Sharpness, Copy Ratio, Erase Frame, Job Build, Delayed Send, Preview, Job Done Notice, File Name, Subject/ Message, Reply-to, E-mail Priority, TX Report, Original Content Orientation, Skip Blank Pages

Fax specifications

Maximum number of connection lines:	1
Modem speed:	Super G3: 33.6 kbps G3: 14.4 kbps
Compression method:	MH, MR, MMR, JBIG
Resolution (dpi):	400 x 400 (Ultra Fine), 200 x 400 (Super Fine), 200 x 200 (Fine), 200 x 100 (Normal)
FAX memory:	Up to 30,000 pages (2,000 jobs)
Group dials/destinations:	Max. 199 dials
Sequential broadcast:	Max. 256 addresses
Memory backup:	Yes
Fax Features:	Sender’s Name (TTI), Selecting the Telephone Line (when sending fax), Direct Send, Delayed Send, Preview, Job Done Notice, TX Report, Interrupt Transmission, Sequential Broadcasting, Password/Subaddress Sending, Confidential Mailbox, 2 on 1 Log

Store specifications

Mail Box (Number supported):	100 User Inboxes, 1 Memory RX Inbox, 50 Confidential Fax Inboxes 30,000 (2,000 jobs) Maximum Pages Stored
Advanced Space:	Communication Protocol: SMB or WebDAV Supported Client PC: Windows® 8.1/10 Concurrent Connections (Max.): SMB:64, WebDAV:3
Advanced Space available disc space:	Approx. 16 GB Approx. 480 GB (with optional)
Advanced Space features:	Authentication for Advanced Space Log-in, Sort Function, Printing a PDF File with a Password, imageWARE Secure Audit Manager Support, Search, File Preview, Authentication Management, Open to public, URI TX, Backup/Restore

Security specifications

Authentication & Access Control:	User Authentication (Picture Login, Picture and PIN Login, Card Login, Username and Password Login, Function Level Login, Mobile Login), Department ID Authentication (Department ID and PIN Login, Function Level Login), uniFLOW Online Express (PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login), Access Management System (Access Control)
Document Security:	Print Security (Secure Print, Encrypted Secure Print, Forced Hold Printing, uniFLOW Secure Print1), Receive Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically), Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS, Adobe LiveCycle® Rights Management ES2.5 Integration), BOX Security (Mail Box Password Protected, Advanced Space Access Control), Send Data Security (Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/ Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support), Document Tracking (Secure Watermark) 1 Requires uniFLOW Online / uniFLOW
Network Security:	TLS 1.3, IPSec, IEEE802.1X authentication, SNMP V3.0, Firewall Functionality (IP/MAC Address Filtering), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/ Wired LAN), Disabling Unused Functions (Enabling/ Disabling Protocols/Applications, Enabling/Disabling Remote UI, Enabling/Disabling USB Interface), G3 FAX separation from LAN, WPA3, USB Port separation from LAN, Prohibit the execution of files stored in Advanced Box in the MFP, Scan and Send -Virus Concerns for E-mail Reception
Device Security:	Protecting SSD Data [SSD Data Encryption (FIPS140-2 Validated), SSD Lock], Standard SSD Initialize, Trusted Platform Module (TPM), Job Log Conceal Function, Protecting MFD Software Integrity, Checking MFP Software Integrity (Verify System at Startup, Runtime Intrusion Detection), Common Criteria Certification (HCD-PP: pending confirmation)
Device Management and Auditing:	Administrator Password, Digital Certificate And Key Management, Audit Log, Cooperating with External Security Audit System (Security Information and Event Management), Image Data Logging, Security Policy Setting

Environmental specifications

Operating environment:	Temperature: 20-27 0C Humidity: 15-60 % RH (Relative Humidity without condensation)
Power source:	C270: 220-240 V (±10 %), 50/60 Hz (±2 Hz), 11 Amp C265: 220-240 V (±10 %), 50/60 Hz (±2 Hz), 10 Amp

Plug (main unit)

Power consumption:	C270 Approx. 2,500 W "C265 Approx. 2,000 W; Copying: (with DADF continuous scan) Approx. 1,228 W1 Standby: Approx. 136.6 W1 Sleep mode: Approx. 0.9 W2 1 Reference value: measured by only one unit. *2 0.9W sleep mode is not always available in all circumstances due to certain settings.
Noise levels (BW/CL):	Sound Power Level (LWA,m) Active (BW) (1-sided) C270: 7.0 B, Kv 0.3 B C265: 7.0 B, Kv 0.3 B Reference value: measured only one unit with ISO7779, described with ISO9296 (2017) Sound Pressure (LpAm) Bystander’s position: Active (BW/CL) (1-sided) C270: 56 dB/56 dB* C265: 55 dB/55 dB Stand-by C270/C265: 35 dB* * Reference value: measured only one unit with ISO7779, described with ISO9296 (2017)
Standards:	Blue Angel

Consumables

Toner cartridges:	T-07 TONER BK/C/M/Y
Toner Yield (Estimated @ 8.5% Coverage):	Toner T07 BK: 54,500 pages Toner T07 C/M/Y: 37,500 pages

Software and printer management

Tracking and reporting:	Universal Login Manager (ULM) uniFLOW Online Express
Remote management tools:	iWEMC (iW Enterprise Management Console) eMaintenance Content Delivery System
Scanning software:	Color Network ScanGear 2
Optimisation tools:	Canon Driver Configuration Tool
Platform:	MEAP (Multifunctional Embedded Application Platform)

Fiery print controller specifications

Optional/Standard:	Optional
Name:	imagePRESS Server M20 (Embedded)
Print resolution (dpi):	1200 x 1200, 600 x 600
Page Description Language(s):	Adobe PS3, PCL6
Memory:	8 GB (2 x 4 GB)
Hard Disk Drive:	500 GB SATA
Processor speed:	Intel Pentium G5400 (3.7 GHz)
System:	Fiery FS500
Fonts:	PS: 138 Fonts PCL: 113 Fonts
Supported Operating:	Systems Windows® 7 64 bit/Windows 8.1 64 bit/Windows10 64 bit/ Windows11/Windows Server 2008 R2 64bit only/Windows Server 2012 64bit only/ Windows Server 2012 R2 64bit only/Windows Server 2016 64bit/Windows Server 2019 64bit/Windows Server 2022 64bit/ MAC OS (10.14, 10.15, 11.0, 12)
Interface:	2 x Ethernet (1000Base-T/100Base-TX/10Base-T), USB3.0 x 2 (Rear), USB2.0 x 4 (Rear)
Network protocols:	TCP/IP (FTP, SMTP, POP, HTTP, SNMP, LDAP, SLP, SMB, LPD, IPP, WS-Discovery, Bonjour, Direct Mobile Printing, Port9100, SNTP, 802.1X, DHCP, DNS, NTP)
Direct print:	PDF1.7, EPS, TIFF6, JDF1.4/JMF (Optional)
VDP:	FreeForm v1/v2.1
Fiery print controller standard features:	Fiery Command WorkStation6 / Paper Catalog / Fiery Spot-On / Fiery Remote Scan / Fiery Hot Folders & Virtual Printers
Fiery print controller options:	Fiery Impose / Fiery Compose / Fiery Impose and Compose / Fiery Job Expert and PDF Processing Kit
Hardware platform:	E500
Base OS:	Debian of Linux
Power source:	AC100-240V, 50HZ/60HZ, 3.0A (100V) - 1.3A (240V)
Maximum Power consumption:	55 W
Dimensions (W x D x H):	297 x 90 x 272 mm
Weight:	Fiery unit only (with plate): Approx. 5.5 kg

Paper supply options

Paper Deck Unit-E1:

Paper Capacity: 3,500 sheets (80 gsm)
Paper Type: Thin, Plain, Recycled, Thick, Colour,
Pre-punched, Letterhead, Bond
Paper Size: A4, B5, LTR*
Paper Weight: 52-256 gsm
Power Source: From the main unit
Dimensions (W x D x H): 340 x 630 x 572 mm (attached to
the main unit) Weight: Approx. 34 kg
*Media size change requires service technicians

POD Deck Lite-C1:

Paper Capacity: 3,500 sheets (80 gsm)
Paper Type: Thin, Plain, Recycled, Thick, Colour,
Pre-punched, Letterhead, Bond, Tab, Transparency, Label,
Coated, Textured, Tracing, Envelope*
Paper Size: A3, B4, A4, A4R, B5, B5R, A5R, SRA3, 11”x17”,
LGL_R, LTR, LTR_R, EXE, STMT_R, 12”x18”, 13”x19”, 8K, 16K,
16K_R, Envelope [No.10(COM10), Monarch, DL, ISO-C5],
Custom size (139.7 x 148.0 mm to 330.2 x 487.7 mm)
Paper Weight: 52-350 gsm
Power Source: 220-240V, 50/60Hz, 1.2A
Dimensions (W x D x H): 633 x 686 x 574 mm (attached to
the main unit) Weight: Approx. 68 kg
*Requires ENVELOPE FEEDER ATTACHMENT-G1

Output options

Copy Tray-R2:	Provides a simple tray for basic output needs. Capacity: 250/100 sheets (1-sided/2-sided, 80 gsm)
Staple Finisher-AC1 (External):	Lower Tray (A) Capacity: A4/A5R/B5 3,000 sheets (80 gsm), SRA3/A3/A4R/B4/ B5R/13”x19” 1,500 sheets (80 gsm), A6R 250 sheets1 (80-105 gsm), Envelope 30/100 sheets (Monarch/Others), Long sheet2 (Over 487.7 mm up to 762 mm length) 100 sheets (79 gsm), Long sheet2 (Over 762 mm length) 1 sheet (holding by hand), All size of thin paper (52-63 gsm) 1,500 sheets, Capacity for coated paper is half of that for plain paper 1 A6R 50 sheets (106 gsm and above) * 2 Optional LONG SHEET TRAY-B1 is required Upper Tray (B) Capacity: A4/A5R/B5 250 sheets (80 gsm), SRA3/A3/A4R/B4/ B5R/13”x19” 125 sheets (80 gsm) Mid Tray (C) Capacity: A4/A5R/B5 250 sheets (80 gsm), SRA3/A3/A4R/B4/ B5R/13”x19” 125 sheets (80 gsm) Paper Weight for Tray A: 52-350 gsm, 52-256 gsm, 52-105 gsm Excluding duplex printed thin paper (52-63 gsm) and any special media (Tracing, Transparency, Label) Paper Weight for Tray B/C: 52-256 gsm* * Excluding duplex printed thin paper (52-63 gsm) Staple Position: Corner, Double Staple Capacity: A4 65 sheets, A3/A4R 40 sheets, 2 sheets Power Source: From the main unit Dimensions (W x D x H): 527 (Max 656) x 623 x 1,099 (Max 1,195) mm *when the auxiliary tray is extended. Weight: Approx. 36 kg
Booklet Finisher-AC2 (External):	Tray Capacity / Paper Weight / Staple Position / Staple Capacity: same as STAPLE FINISHER-AC1 but if there are any sheets on the saddle tray, the capacity of Tray A becomes limited to 1,500 sheets Booklet Stitch Paper Size: A3, A4R, B4, Custom size (195 x 270 mm to 304.8 x 457.2 mm) Booklet Stitch Paper Weight: Body sheet 52-220 gsm, Cover sheet 52-256 gsm Booklet Stitch Staple Capacity (including 1 cover sheet): 20 sheets (52-81.4 gsm), 10 sheets (82-105 gsm), 5 sheets (106-150 gsm), 4 sheets (151-209 gsm), 3 sheets (210-220 gsm), 5 sheets (85- 150 gsm), 4 sheets (151-209 gsm), 3 sheets (210-220 gsm) Non Staple Folded Bunch Capacity: 3 sheets (52-105 gsm), 1 sheet (106-256 gsm), media> 1 sheet Power Source: From the main unit Dimensions (W x D x H): 527 (Max 656) x 623 x 1,099 (Max 1,195) mm *when the auxiliary tray is extended. Weight: Approx. 60 kg
Staple Finisher-AG1:	Requires the Accessory Interface Kit-A2 Tray Capacity (with 80 gsm paper): Upper Tray: SRA3, A3, A4, A4R, A5R, A5, A6R, B4, B5, B5R: 1,000 sheets (64 to 324gsm), 200 sheets (325 to 350gsm) Lower Tray: A4, B5: 2,000 sheets (64 to 324 gsm), 400 sheets (325 to 350 gsm) SRA3, A3, A4R, B4: 1,000 sheets (64 to 324 gsm), 200 sheets (325 to 350 gsm) B5R: 1,000 sheets (64 to 324 gsm), 400 sheets (325 to 350gsm) Lower Tray (High capacity loading mode): A4, B5: 4,000 sheets, A4R, B5R : 2,000 sheets A3, B4 : 1,500 sheets SRA3 : 1,000 sheets Paper Weight: 52 to 350 gsm Staple Position: Corner, Double Staple Capacity (including Staple On Demand): A4/B5: 100 sheets (52 to 80 gsm) A3/A4R/B4/B5R: 50 sheets (52 to 81.4 gsm) Power supply: 220-240V/8A 50/60Hz Dimensions (W x D x H): 860 × 792 × 1,239 mm (when the extension tray is extended) Weight: Approx. 130 kg
Booklet Finisher-AG1:	Requires the Accessory Interface Kit-A2 (PCB unit) (Includes the above Staple Finisher-AG1 basic staple specifications) Saddle Stitch paper size: SRA3, A3, A4R, B4, Custom Size (210.0 x 279.4 mm to 330.2 x 487.7 mm) Saddle Stitch Staple Capacity: 25 sheets (52 to 80 gsm) (including 1 cover sheet) Power supply: 220-240V/8A 50/60Hz Dimensions (W x D x H): 1,060 × 792 × 1,239 mm (when the extension tray is extended) Weight: Approx. 180 kg
4 Hole Puncher Unit-A1:	Requires either the STAPLE FINISHER-AC1 or BOOKLET FINISHER-AC2 4 Holes (SWE) Paper Weight: 52-300 gsm Paper Size: A3, A4, A4R, B4, B5, B5R Power Source: From the finisher
Puncher Unit-BT1 (2/F4H):	Requires either the STAPLE FINISHER-AG1 or BOOKLET FINISHER-AG1 2 or 4 Holes (FRN) Paper Weight: 52-300 gsm Paper Size: 2 holes A3, A4, A4R, A5L, B4, B5, B5R, Custom size (182 x 182 mm to 297 x 432.0 mm excluding 203 x 257 "mm to 297 x 270 mm); 4 holes A3, A4, B4, B5, Custom size (257 x 182 mm to 297 x 432 mm) Power Source: From the finisher
Puncher Unit-BU1 (S4H):	Requires either the STAPLE FINISHER-AG1 or BOOKLET FINISHER-AG1 4 Holes (SWE) Paper Weight: 52-300 gsm Paper Size: A3, A4, A5L, B4, B5, Custom size (257 x 182 mm to 297 x 432 mm) Power Source: From the finisher
Document Insertion Unit-R1:	Requires either the Staple Finisher-AG1 or Booklet Finisher- AG1 Number of trays: 2 Tray Capacity: Up to 100 Sheets (with 80 gsm paper) Upper tray: up to 200 sheets Lower tray: up to 200 sheets Acceptable Paper Type: Thin, Plain, Recycled, Color, Heavy, Coated, Textured, Bond, Pre-punched, Letterhead, Tab Acceptable Paper Sizes: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R Acceptable Paper Weight: 52 to 300 gsm Power Source: 100-240V/50/60Hz 1.0A Dimensions (W x D x H): 336× 793 × 1,407 mm (attached to the device: width excluding document tray) Weight: Approx. 61 kg
Paper Folding Unit-K1:	Requires either the Staple Finisher-AG1 or Booklet Finisher- AG1 Supported Folding Type: Z-Fold, C-Fold, Accordion-Z-Fold, Double Parallel-Fold, Half-Fold Acceptable Paper Type: Thin, Plain, Recycled, Color, Bond Acceptable Paper Sizes: Z-Fold: Thin, Plain, Recycled, Color: A3,A4R,B4 C-Fold/Accordion-Z-Fold/Double Parallel-Fold/Half-Fold: A4R Acceptable Paper Weight: Z-Fold/ C-Fold/Accordion-Z-Fold/Half-Fold: 52 to 105 gsm Double Parallel-Fold: 52 to 90 gsm Power Source: from the finisher Dimensions (W x D x H): 336 × 793 × 1,190 mm (attached to the device) Weight: Approx. 71 kg
2/4 Hole Puncher Unit-A1:	Requires either the Staple Finisher-AC1 or Booklet Finisher-AC2 Two or Four Holes Acceptable Punch Paper Weight: 52 to 300 gsm Acceptable Punch Paper Size: Two holes A3, A4, A4R, A5, B4, B5, B5R Four holes A3, A4 Power Source: From the finisher
Booklet Trimmer-G1:	Requires Booklet Finisher-AG1 Acceptable Paper Size: Standard size: SRA3, A3, A4R, B4 Custom size: 210.0x279.4 mm to 330.2x487.7 mm Waste Tray Capacity: approx. 5,000 sheets Acceptable Paper Weight: 52 to 220 gsm Trim Amount: 2 to 28mm Power Source: from the finisher Dimensions (W x D x H): 1,933 × 794 × 1,044 mm (attached to the device: width excluding belt conveyer) Weight: Approx. 152 kg
Document Insertion/Folding Unit-K1:	Requires either the Staple Finisher-AC1 or Booklet Finisher-AC2 Number of trays: 1 Supported Folding Type: Z-Fold, C-Fold Acceptable Paper Type: Insertion Unit: Thin, Plain, Recycled, Color, Heavy, Coated, Textured, Bond, Letterhead, Tab Z-Fold/C-Fold: Thin, Plain, Recycled, Color Acceptable Paper Sizes: Insertion Unit: SRA3, A3, A4, A4R, B4, B5, B5R Z-Fold: A3, A4R, B4 C-Fold: A4R Acceptable Paper Weight: Insertion Unit: 60 to 256 gsm Z-Fold/C-Fold: 60 to 105 gsm Tray Capacity (with 80 gsm paper): Insertion: Up to 100 Sheets Z-Fold: A3, B4: 30 sheets A4R: 10 sheets C-fold: A4R: 40 sheets Z-Fold output to the Staple Finisher-AC1 or Booklet Finisher-AC2 Power Source: 100-240V/50/60Hz 1.0A Dimensions (W x D x H): 247 × 679 × 1,242 mm (attached to the device: width excluding document tray) Weight: Approx. 76 kg

Hardware accessories

Card Readers:	COPY CARD READER-F1 - Magnetic physical card access system. (Integrates with Department ID, not for use with uniFLOW) COPY CARD READER ATTACHMENT-A4 - Attachment kit for COPY CARD READER-F1.
Others:	Utility Tray-B1 Printer Cover-H2 Tab Feeding Attachment-F1 Numeric Keypad-A2 Accessory Interface Kit-A2 Finisher Jogger Kit-A1 Side Guide Plate Fixing Bracket-A1 Envelope Feeder Attachment-H1 Envelope Feeder Attachment-F1 Envelope Feeder Attachment-G1 Stack Bypass Alignment Tray-D1 Long Sheet Tray-B1 Paper Deck Path Kit-B1 Finisher Long Sheet Catch Tray-B1 Inserter Option controller Kit-A1

Security options

Data Security:

Memory Mirroring Kit-A1
1TB SSD-A1
250GB SSD-A1

System & controller options

Print Accessories:	PCL International Font Set-A1 imagePRESS PS Printer Kit-G1
Barcode Printing:	BARCODE PRINTING KIT-D1 - Provides the ability to print 1D and 2D barcodes on output using jet caps technology.
EFI-Fiery Based Controller:	imagePRESS Server M20
EFI-Fiery Based Controller Options:	Fiery Impose Fiery Compose Fiery Impose and Compose

System accessories

EFI-Fiery Based Controller Options:

Copy Control Interface Kit-A1
Connection Kit-A4 for Bluetooth LE
Serial Interface Kit-K3

Fax accessories

EFI-Fiery Based Controller Options:

Super G3 FAX Board-AX1
Remote Fax Kit-A1
IP FAX Expansion Kit-B1

Other options

Accessibility Accessories:	ADF Access Handle-A1 Voice Guidance Kit-G1 Voice Operation Kit-D1
Staple Cartridges:	Staple-N1 Staple-P1 Staple Cartridge-X1 Staple Cartridge-Y1
