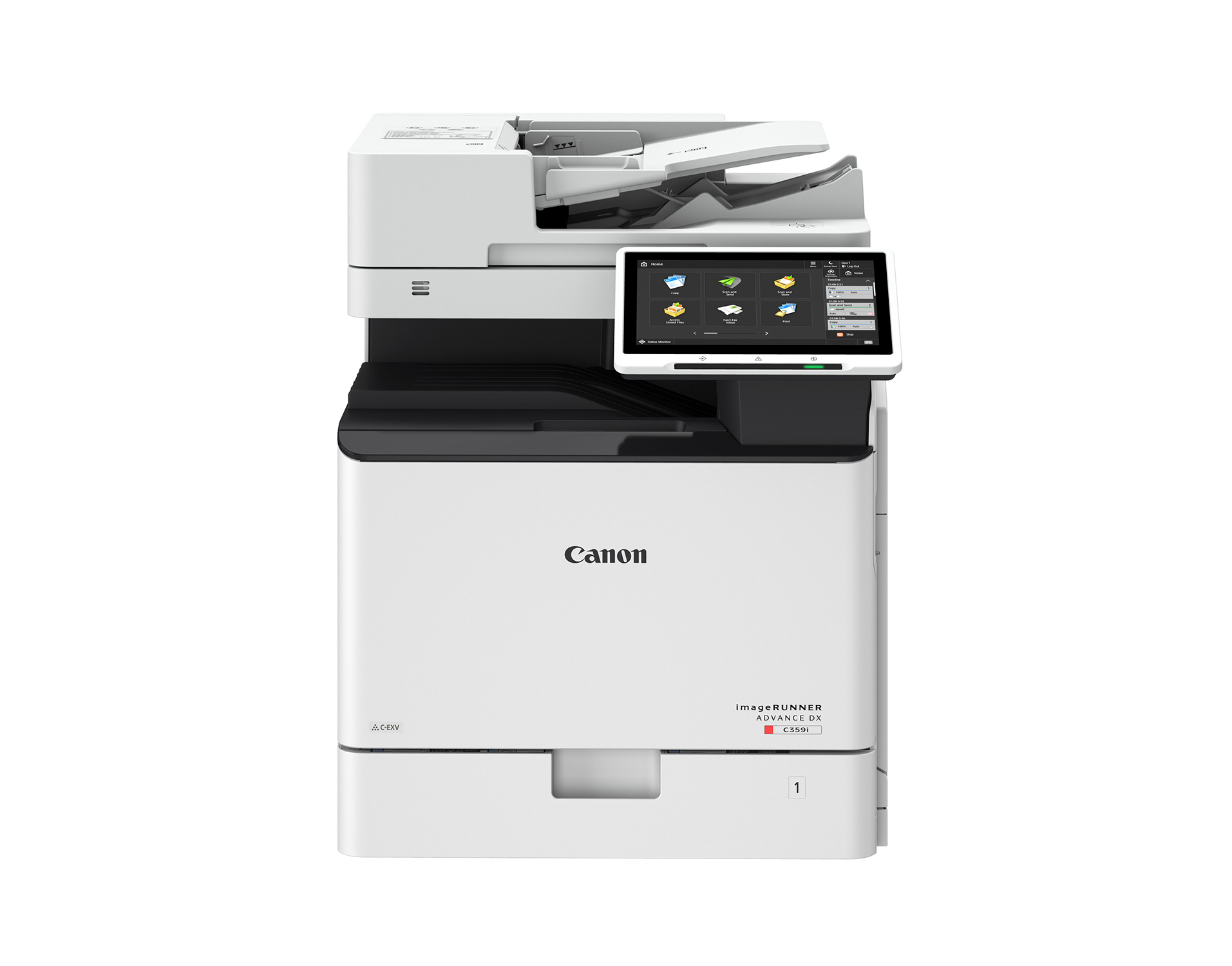

цветной МФУ Canon imageRUNNER ADVANCE DX C359i
Описание imageRUNNER ADVANCE DX C359i
Canon imageRUNNER ADVANCE DX C359i - универсальное цветное многофункциональное устройство формата A4 с большим цветным сенсорным экраном, обеспечивающее быстрое сканирование и гибкие возможности подключения на единой платформе imageRUNNER ADVANCE DX. Идеальный выбор для офисов с большими объемами работы и необходимостью в компактных решениях.
Серия imageRUNNER ADVANCE DX C259/C359 содержит модели формата A4, но предлагает большую часть функциональных возможностей более крупных устройств формата A3 корпоративного уровня. Это делает ее ценным подарком для любых интенсивно работающих групп, которым требуется компактная техника.
Картриджи
Тип: цветное лазерное многофункциональное устройство A4
Скорость: 35 цвет. или ч/б стр/мин
Main unit
Machine type: | A4 Colour Laser Multifunctional |
Core functions: | Print, Copy*, Scan*, Send*, Store and Optional Fax* * Not applicable to iR-ADV DX C359P (Printer model) |
Processor: | 1.8GHz Dual Core Processor |
Control Panel: | 10.1” TFT LCD WSVGA Color Touch panel |
Memory: | Standard: 3.5GB RAM |
Hard Disk drive: | Standard: (SSD) 256 GB |
Interface Connection: | NETWORK Standard: 1000Base-T/100Base-TX/10Base-T Optional: Wireless LAN (IEEE 802.11 b/g/n) OTHERS Standard: USB 2.0 (Host) x1, USB 3.0 (Host) x1, "USB 2.0 (Device) x1; Optional: Serial Interface, Copy Control Interface |
Paper Supply Capacity (A4, 80gsm): | Standard: 650 Sheets 100-sheets Multi-purpose tray 550-sheets Paper cassette x 1 Maximum: 2,300 Sheets (with Cassette Feeding Unit-AK1) |
Paper output capacity (A4, 80gsm): | Standard: 250 Sheets Maximum: 500 Sheets (with Staple Finisher-Z1) |
Finishing capabilities: | Standard: Collate, Group With Finisher : Collate, Group, Offset, Staple |
Supported media types: | Multi-purpose tray: Thin, Plain, Heavy, Recycled, Color, Transparency, Pre-punched, Bond, Label, Envelope Paper Cassette: Thin, Plain, Heavy, Recycled, Color, Pre-punched, Bond, Envelope* |
Supported media sizes: | Multi-purpose tray: Standard size: A4, A5, A5R, A6, B5, Custom Size: 98.0 x 148.0 mm to 216.0 x 355.6 mm Envelopes: COM10 No.10, Monarch, DL, ISO-C5 Envelope custom size: 98.0 x 148.0 mm to 216.0 x 355.6 mm Paper Cassette: Standard size: A4, A5, A5R, A6, B5, Custom size: 98.0 x 190.5 mm to 216.0 x 355.6 mm Envelopes: COM10 No.10, Monarch, DL, ISO-C5 |
Supported media weights: | Multi-purpose tray: 60 to 220 gsm Cassette: 60 to 163 gsm Duplex: 60 to 163 gsm |
Warm-up Time: | Quick Startup Mode: 4 seconds or less * (applicable to C359i/C259i) * Time from device power-on to when the copy icon appears and is enabled to operate on the touch panel display. From Sleep Mode: 10 seconds or Less From Power On: 10 seconds or Less * * iR-ADV DX C359i/C259i: Time from device power-on, until copy ready (not print reservation) * iR-ADV DX C359P: Time from device power-on, until print ready (not print reservation) |
Dimensions (W x D x H): | iR-ADV DX C359i/C259i: 519 x 658 x 638 mm iR-ADV DX C359P: 519 x 658 x 525 mm |
Installation Space(W x D): | Basic: 852 x 908 mm (with Multi-purpose tray extended + paper cassette open) Fully Configured: 1,407 x 908 mm (with Staple Finisher-Z1 + Multi-purpose tray extended + paper cassette open) |
Weight: | iR-ADV DX C359i/C259i: Approx. 48 kg (including toner) iR-ADV DX C359P: Approx. 41 kg (including toner) |
Print specifications
Print Speed*: | iR-ADV DX C359i/C359P 35 ppm (A4), 26 ppm (A5R), 61 ppm (A5), 23 ppm (A6) iR-ADV DX C259i 25 ppm (A4), 26 ppm (A5R), 46 ppm (A5), 23 ppm (A6) * 1-sided |
Duplex Print Speed (A4/LTR): | iR-ADV DX C359i/C359P: BW 35ipm/36ipm, CL 35ipm/36ipm C259i: BW 25ipm/26ipm, CL 25ipm/26ipm |
Print Resolution (dpi): | 600 x 600 to 1,200 x 1,200 (equivalent) |
Page description languages: | Standard: UFR II, PCL6, Adobe® PostScript® 3TM |
Direct Print: | Supported file types: TIFF, JPEG, PDF, EPS, and XPS |
Printing from mobile and cloud: | AirPrint, Mopria, Universal Print by Microsoft, Canon PRINT Business, and uniFLOW Online A range of software and MEAP-based solutions are available to provide printing from mobile devices or internet-connected devices and cloud-based services depending on your requirements. Please contact your sales representative for further information |
Fonts: | PS fonts: 136 Roman PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T*1 (Japanese, Korean, Simplified and Traditional Chinese), Barcode fonts*2 *1 Optional PCL International Font Set-A1 is required. *2 Optional Barcode Printing Kit-D1 is required. |
Print Features: | Secured Print, Secure Watermark, Header/Footer, Page Layout, Two-sided Printing, Toner Reduction, Poster Printing, Forced Hold printing, Print Date, Scheduled Printing, Printing Using a Virtual Printer |
Operating System: | UFRII: Windows® 8.1/10/11/Server2012/Server2012 R2/ Server2016/Server2019/Server2022, Mac OS X (10.11 or later) PCL: Windows® 8.1/10/11/Server2012/Server2012 R2/ Server2016/Server2019/Server2022 PS: Windows® 8.1/10/11/Server2012/Server2012 R2/ Server2016/Server2019/Server2022, Mac OS X (10.11 or later) PPD: Windows® 8.1/10/11,Mac OS X (10.11 or later) |
Copy specifications
Copy Speed* (BW/CL): | iR-ADV DX C359i 35 ppm (A4), 26 ppm (A5R), 61 ppm (A5), 23 ppm (A6) iR-ADV DX C259i 25 ppm (A4), 26 ppm (A5R), 46 ppm (A5), 23 ppm (A6) * Single-sided |
"First-Copy-Out Time (A4; BW/ CL)": | iR-ADV DX C359i: Approx. 5.1/6.9 seconds or less iR-ADV DX C259i: Approx. 6.9/9.4 seconds or less |
Copy resolution (dpi): | 600 x 600, 300 x 600 |
Multiple Copies: | Up to 999 copies |
Copy Density: | Automatic or Manual (9 Levels) |
Magnification: | Variable zoom: 25% to 400% (1% Increments) Preset reduction/enlargement: 25%, 50%, 70%, 100%(1:1), 141%, 200%, 400% |
Copy Features: | Preset R/E Ratios by Area, Two-Sided, Density Adjustment, Original Type Selection, Interrupt Mode, Two-sided Original, Job Build, N on 1, Page Numbering, Copy Set Numbering, Sharpness, Erase Frame, Secure Watermark, Print Date, Copy ID Card, Skip Blank Pages, Color Mode, Reserved copy, Copy Sample |
Scan specifications
Standard type: | Single-pass Duplexing Automatic Document Feeder* [2-sided to 2-sided (Automatic)] * Detect Feeder Multi Sheet Feed is supported. |
Document Feeder Paper Capacity (80 gsm): | 100 Sheets |
Acceptable originals and weights: | Platen: Sheet, Book, and 3-Dimensional Objects Document Feeder media weight : 1-sided scanning: 42 to 128 gsm (BW), 64 to 128 gsm (CL) 2-sided scanning: 50 to 128 gsm (BW), 64 to 128 gsm (CL) Note: Business card: 80 to 220 gsm Original width narrower than A6 except business card: 50 to 128 gsm |
Supported media sizes: | Platen scanning size: up to 216.0 x 355.6 mm Document Feeder media size: A4, A5R, A6, B5, Custom size: 48.0 x 128.0 mm to 216.0 x 355.6 mm Business card: 48.0 x 85.0 mm to 55.0 x 91.0 mm |
Scan Speed (ipm: BW/CL, A4): | Send (300 x 300 dpi): up to 95/190 when Automatic Colour Select “OFF” 1-sided Scanning: 95 2-sided Scanning: 190 Automatic Color Select “ON”: 1-sided Scanning: 50 2-sided Scanning: 100 Copy: Scan Speed priority (300 x 600 dpi): 1-sided Scanning: 50 2-sided Scanning: 100 Image Quality priority (600 x 600 dpi): 1-sided Scanning: 30 2-sided Scanning: 50 |
Scan Resolution (dpi): | Scan for Copy: up to 600 x 600 Scan for Send: (Push) up to 600 x 600 (SMB/FTP/WebDAV/IFAX), (Pull) up to 600 x 600 Scan for Fax: up to 600 x 600 |
Pull Scan Specifications: | Colour Network ScanGear2. For both TWAIN and WIA Supported OS: Windows®7/ 8.1/ 10/ Server2008/ Server2008 R2/ Server2012/ Server2012 R2/ Server 2016 As of Feb. 2020 |
Scan Method: | Push Scan, Pull Scan, Scan to Box, Scan to Advanced Space, Scan to Network, Scan to USB Memory Key, Scan to Mobile devices, Scan to cloud (uniFLOW Online - Optional) |
Send specifications
Destination: | Standard: E-mail/Internet FAX (SMTP), SMB 3.1.1, FTP, WebDAV, Mail Box Optional: Super G3 FAX, IP Fax (for iR-ADV DX C359i/C259i) |
Address Book: | LDAP (2,000)/Local (1,600)/Speed dial (200) |
Send resolution (dpi): | Push: up to 600 x 600 Pull: up to 600 x 600 |
Communication protocol: | File: FTP(TCP/IP), SMB 3.1.1 (TCP/IP), WebDAV E-mail/I-Fax: SMTP, POP3 |
File Format: | Standard: TIFF, JPEG, PDF (Compact, Searchable, Apply policy, Optimize for Web, PDF A/1-b, Trace & Smooth, Encrypted, Device Signature, User Signature), XPS (Compact, Searchable, Device Signature, User Signature), Office Open XML (PowerPoint, Word) |
Universal Send Features: | Original Type Selection, Two-sided Original,Density Adjustment, Sharpness, Erase Frame, Job Build, Delayed Send, Preview, Job Done Notice, File Name, Subject/ Message, Reply-to, E-mail Priority, TX Report, Original Content Orientation, Skip Blank Pages |
Fax specifications (optional)
Maximum Number of Connection Lines: | 2 (2nd Line optional) |
Modem Speed: | Super G3: 33.6 kbps G3: 14.4 kbps |
Compression Method: | MH, MR, MMR, JBIG |
Resolution (dpi): | 400x400 (Ultra Fine), 200x400 (Super Fine), 200x200 (Fine), 200x100 (Normal) |
Sending/Recording Size: | A4, A5*, A6*, B5*/A4, A5, B5 *Sent as A4 |
FAX memory: | Up to 30,000 pages (2,000 jobs) |
Speed dials: | Max. 200 |
Group dials/destinations: | Max. 199 dials |
Sequential broadcast: | Max. 256 addresses |
Memory backup: | Yes |
Fax Features: | Sender’s Name (TTI), Selecting the Telephone Line (when sending fax), Direct Send, Delayed Send, Preview, Job Done Notice, TX Report, Interrupt Transmission, Sequential Broadcasting, Password/Subaddress Sending, Confidential Mailbox, 2 on 1 Log |
Store specifications
Mail Box (Number supported): | 100 User Inboxes, 1 Memory RX Inbox, 50 Confidential Fax Inboxes Maximum 10,000 Pages (2,000 jobs) Stored |
Advanced Space: | Communication Protocol: SMB or WebDAV Supported Client PC: Windows® 8.1/10 Concurrent Connections (Max.): SMB:64, WebDAV:3 |
Advanced Space available disc space: | Approx. 16GB |
Advanced Space Features: | Authentication for Advanced Space Log-in, Sort Function, Printing a PDF File with a Password, imageWARE Secure Audit Manager Support, Search, File Preview, Authentication Management, Open to public, URI TX, Backup/Restore |
Security specifications
Authentication and Access Control: | User Authentication (Picture Login, Picture and PIN Login, Card Login, Username and Password Login, Function Level Login, Mobile Login), Department ID Authentication (Department ID and PIN Login, Function Level Login), uniFLOW Online Express (PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login), Access Management System (Access Control) |
Document Security: | Print Security (Secure Print, Encrypted Secure Print, Forced Hold Printing, uniFLOW Secure Print*1), Receive Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically), Scan Security (Encrypted PDF, Device Signature PDF/ XPS, User Signature PDF/XPS, Adobe LiveCycle® Rights Management ES2.5 Integration), BOX Security (Mail Box Password Protected, Advanced Space Access Control), Send Data Security (Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support), Document Tracking (Secure Watermark) *1 Requires uniFLOW Online / uniFLOW |
Network Security: | TLS 1.3, FTPS, IPSec, IEEE802.1X authentication, WPA3 support (Wi-Fi), SNMP V3.0, Firewall Functionality k(IP/MAC Address Filtering), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/Wired LAN), Disabling Unused Functions (Enabling/Disabling Protocols/ Applications, Enabling/Disabling Remote UI, Enabling/ Disabling USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Prohibit the execution of files stored in Advanced Space in the MFP, Scan and Send -Virus Concerns for E-mail Reception |
Device Security: | Protecting SSD Data [SSD Data Encryption (FIPS 140- 2/140-3*), SSD Lock], Standard SSD Initialize, Trusted Platform Module (TPM 2.0), Job Log Conceal Function, Protecting MFD Software Integrity, Checking MFD Software Integrity & Platform Firmware Resiliency (NIST SP800- 193) with Automatic System Recovery (Verify System at Startup, Runtime Intrusion Detection), Comply IEEE2600.2 (Common Criteria Certification) *validation pending |
Device Management and Auditing: | Administrator Password, Digital Certificate And Key Management, Remote Management Two-factor Authentication, Audit Log, Cooperating with External Security Audit System (Security Information and Event Management), Image Data Logging, Security Policy Setting Device administration and Security administration Passwords |
Environmental specifications
Operating Environment: | Temperature: 10 to 30 ºC Humidity: 20 to 80 % RH (Relative Humidity) |
Power source: | 220-240 V, 50/60 Hz, 3.9 A |
Power consumption: | Maximum: Approx. 1,500 W Copying (iR-ADV DX C359i/C259i with DADF continuous scan): 575.4 W*1 Printing (iR-ADV DX C359P) [LAN Print (color mode, duplex, with Cassette Feeding unit-AK1)]: 488.5 W*1 Standby: Approx. 40.3 W*1 Sleep mode: Approx. 0.8 W*2 *1 Reference value: measured one unit *2 0.8 W sleep mode is not available in all circumstances due to certain settings. Typical Electricity Consumption (TEC)*: iR-ADV DX C359i/C359P: 0.33kWh iR-ADV C259i: 0.22kWh *As per USA Energy Star 3.0 For detailed information relating to Erp:Lot6/26 regulation, please go to: https://www.canon-europe.com/for_work/lot26/ |
Noise levels: | Sound Power Level (LWA, m)* Active (BW) (1-sided): iR-ADV DX C359i/C359P: 65 dB, Kv 3 dB iR-ADV DX C259i: 62 dB, Kv 3 dB * Reference value: measured only one unit with ISO7779, described with ISO9296 (2017) Sound Pressure (LpAm) Bystander’s position: Active (BW) (1-sided): iR-ADV DX C359i/C359P: 52 dB* iR-ADV DX C259i: 49 dB* Standby: iR-ADV DX C359i/C359P/C259i: 8 dB * Reference value: measured only one unit with ISO7779, described with ISO9296 (2017) |
Standards: | Blue Angel |
Consumables
Toner Cartridges: | C-EXV 55 Toner BK/C/M/Y |
Toner (Estimated Yield @ 5%Coverage): | C-EXV 55 TONER BK: 23,000 pages C-EXV 55 TONER C/M/Y: 18,000 pages |
Software and printer management
Tracking and reporting: | Universal Login Manager (ULM) uniFLOW Online Express* * For more information, please refer to uniFLOW Online Express uniFLOW Online |
Remote management tools: | iW Management Console eMaintenance Content Delivery System |
Scanning software: | Network ScanGear |
Platform: | MEAP (Multifunctional Embedded Application Platform) |
Document Publishing: | Kofax PowerPDF (optional) |
Paper supply options
Cassette Module-AE1: | Paper Capacity: 550 sheets (80 gsm) Paper Type: Thin, Plain, Heavy, Recycled, Color, Pre-punched, Bond Paper Size: A4, A5R, B5, Custom size: 98.0 x 190.5 mm to 216.0 x 355.6 mm Paper Weight: 60 to 163 gsm Power Source: From the Main Unit Dimensions (W x D x H): 511 x 508 x 159 mm (attached to the main unit) Weight: Approx. 10 kg |
Cassette Feeding Unit-AJ1: | Paper Capacity: 550 sheets (80 gsm) Paper Type: Thin, Plain, Recycled, Heavy, Color, Pre-punched, Bond Paper Size: A4, A5R, B5 Custom size: 98.0 x 190.5 mm to 216.0 to 355.6 mm Paper Weight: 60 to 163 gsm Power Source: From the Main Unit Dimensions (W x D x H): 511 x 508 x 425 mm (attached to the main unit) Weight: Approx. 16 kg |
Cassette Feeding Unit-AK1: | Paper Capacity: 550 sheets (80 gsm) x 3 cassettes Paper Type: Thin, Plain, Recycled, Heavy, Color, Prepunched, Bond Paper Size: A4, A5R, B5 Custom size: 98.0 x 190.5 mm to 216.0 to 355.6 mm Paper Weight: 60 to 163 gsm Power Source: From the Main Unit Dimensions (W x D x H): 511 x 508 x 425 mm (attached to the main unit) Weight: Approx. 19 kg |
Output options* *paper capacity may vary with different paper type/size.
Staple Finisher-Z1: | Tray Capacity (80 gsm): A4, A5, A5R, A6, B5: 500 sheets Paper Weight: 60 to 220 gsm Staple Position: Corner Staple Capacity: A4, B5: 30 sheets (60 to 105 gsm) Power Source: From the Main Unit Dimensions (W x D x H): 555 x 459 x 301 mm (Unit size) Weight: Approx. 14 kg |
Hardware accessories
Card Readers: | Various card readers available e.g. MiCard Plus. Please contact local Canon Office for more details. Copy Card Reader-F1 Copy Card Reader Attachment-B5 |
System and controller options
Print Accessories: | PCL International Font Set-A1 |
Barcode Printing: | Barcode Printing Kit-D1 |
System Accessories: | Copy Control Interface Kit-A1 Wireless LAN Board-D1 Serial Interface Kit-K3 |
FAX Accessories: | Super G3 FAX Board-BL1 Remote Fax Kit-A1 IP FAX Expansion Kit-B1 |
Other options
Accessibility Accessories: | ADF Access Handle-A1 |
Consumables: | Staple-P1 |
